Safety Lever
Has anyone made or is there something to extend the Safety Lever so it's easier to flip to Safe for us fat fingered guys instead of trying to get under the ADF lever??
Suppressor 400 TD
Dragon Claw Arrows
Ravntek Broadheads
Dragon Claw Arrows
Ravntek Broadheads
-
- Posts: 624
- Joined: Thu Feb 21, 2019 3:23 pm
Re: Safety Lever
Hmmm, I might be able to come up with something 3D print-able.
adapt3Dprints.square.site
(Charger EXT blackout covers, Charger handle stow brackets, Cheek Rests)
327 Short Banshee
BD417
Micro/Matrix hybrid Steambow
Franken360
(Charger EXT blackout covers, Charger handle stow brackets, Cheek Rests)
327 Short Banshee
BD417
Micro/Matrix hybrid Steambow
Franken360
- nchunterkw
- Posts: 2906
- Joined: Sat Dec 24, 2011 11:21 am
- Location: Wake Forest, NC
- Contact:
Re: Safety Lever
Just like me....the wheels are ever turning.....wheelsquad wrote: ↑Thu Oct 14, 2021 2:06 pmHmmm, I might be able to come up with something 3D print-able.
Keith
Stand by the roads and look, and ask for the ancient paths; where the good way is,
and walk in it and find rest for your souls. - Jer 6:16
Micro 335 & 355
deerboyarchery.wixsite.com/trinitystrings
[email protected]
<{{{><
Stand by the roads and look, and ask for the ancient paths; where the good way is,
and walk in it and find rest for your souls. - Jer 6:16
Micro 335 & 355
deerboyarchery.wixsite.com/trinitystrings
[email protected]
<{{{><
-
- Posts: 1362
- Joined: Thu Aug 04, 2011 9:30 am
- Location: southwest missouri in the ozarks
Re: Safety Lever
what about an adapter like the one you can use on the hammer on Winchester or a marlin 30/30 ???
that goes to the side , ?? it could be put on either side, that could probably be done with a 3d printer
Dave
that goes to the side , ?? it could be put on either side, that could probably be done with a 3d printer
Dave
Be safe in all you do! See ya in the woods!!!
2010 Equinox/ Known as Doe Bow
Firebolts
Swhacker BH,s 125 grn
cheek pad /excell string
D-Bars
S-5,s
vixenmaster custom strings
2010 Equinox/ Known as Doe Bow
Firebolts
Swhacker BH,s 125 grn
cheek pad /excell string
D-Bars
S-5,s
vixenmaster custom strings
Re: Safety Lever
I like the idea. As papa bear mentioned it would be nice if it could be used on either side. A couple of my wood stocks make taking the safety off a little awkward.
Take care
Hatchet
Take care
Hatchet
-
- Posts: 128
- Joined: Thu Nov 08, 2012 7:21 am
- Location: Felton, Pa
Re: Safety Lever
That's what I am looking for, something on the side to make it longer and away from the ADF.. So if someone can come up with anything I will buy and try!! Yes the Hammer extensions would be great but the thread size is to big to drill in the side of safety to have anything for it to grip to..
So if you make a knob and drill both and go with a 4-40 thread I believe it will work..
So if you make a knob and drill both and go with a 4-40 thread I believe it will work..
Suppressor 400 TD
Dragon Claw Arrows
Ravntek Broadheads
Dragon Claw Arrows
Ravntek Broadheads
-
- Posts: 4260
- Joined: Sat Jun 06, 2015 9:55 pm
- Location: south eastern pa (bucks county)
Re: Safety Lever
If you go to a good hardware store they sell small aluminum spacers in the hardware section I'm sure one of them will fit or you can drill out more inside to fit one side of the lever and epoxy it on.
Just make sure it doesn't interfere with the down safety position.
I take my Adf off all my bows don't care for it but I'm Not advocating that type of behavior .
Just make sure it doesn't interfere with the down safety position.
I take my Adf off all my bows don't care for it but I'm Not advocating that type of behavior .
Vixen 2, metal ibex,Phoenix,sapphire,matrix 330 ,matrix 355 ,vortex and baby grand piano y25 relayer.
Trigger tecs,leupold crossbones and nikon bolts.
Zombie slayers and mostly swat broadheads.
Trigger tecs,leupold crossbones and nikon bolts.
Zombie slayers and mostly swat broadheads.
Re: Safety Lever
Good idea, I had one on a Marlin lever .35 Rem. years ago, look up "hammer spur extension", might give you an idea and I'm sure it would be something pretty simple to make.papa bear1 wrote: ↑Thu Oct 14, 2021 4:34 pmwhat about an adapter like the one you can use on the hammer on Winchester or a marlin 30/30 ???
that goes to the side , ?? it could be put on either side, that could probably be done with a 3d printer
Dave
Re: Safety Lever
I can’t see why you can’t drill the lever and install a small bolt. But keep in mind that the easier it is to use, the easier it is to go to fire accidentally
Some people just like stepping on rakes
Re: Safety Lever
Excellent point because because increasing the safety footprint size may contribute to an accident down the road.
EXCALFFLICTION 1991 ->>----------> 2024
Matrix 355
Huskemaw and Leupold crossbow optics.
Boo Strings
SWAT BH's and TOTA heads.
Teach Your Family How To Hunt So You Don't Have To Hunt For Your Family
Matrix 355
Huskemaw and Leupold crossbow optics.
Boo Strings
SWAT BH's and TOTA heads.
Teach Your Family How To Hunt So You Don't Have To Hunt For Your Family
-
- Posts: 1362
- Joined: Thu Aug 04, 2011 9:30 am
- Location: southwest missouri in the ozarks
Re: Safety Lever
As with any modification ( SAFTEY ) should always come first......
Dave
Be safe in all you do! See ya in the woods!!!
2010 Equinox/ Known as Doe Bow
Firebolts
Swhacker BH,s 125 grn
cheek pad /excell string
D-Bars
S-5,s
vixenmaster custom strings
2010 Equinox/ Known as Doe Bow
Firebolts
Swhacker BH,s 125 grn
cheek pad /excell string
D-Bars
S-5,s
vixenmaster custom strings
Re: Safety Lever
It would probably be a lot easier to get it snagged on brush or clothing and that in itself would probably be a good reason not to modify it. I think I'll just keep using mine the way it is. Maybe reshape the wood stock so it's easier to get to the safety lever. I left a 1" block of wood there for the cocking rope and probably could cut a piece of it off. On my next stock I'll design it differently.
Take care
Hatchet
Re: Safety Lever

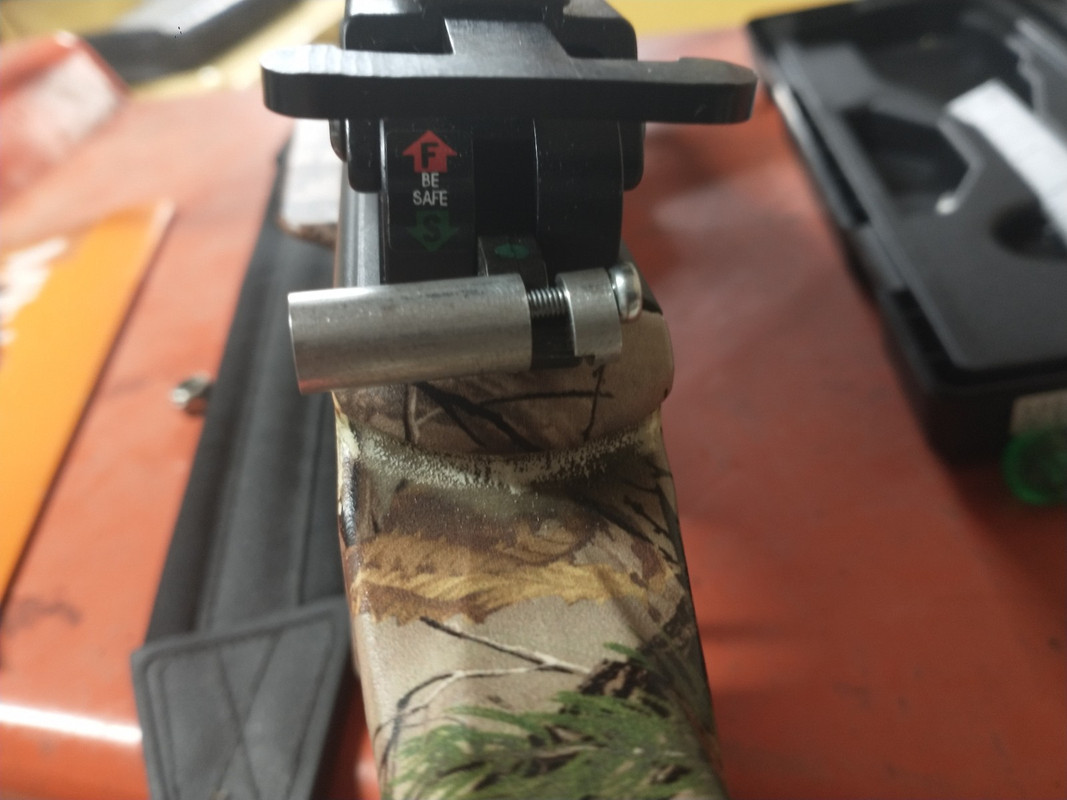

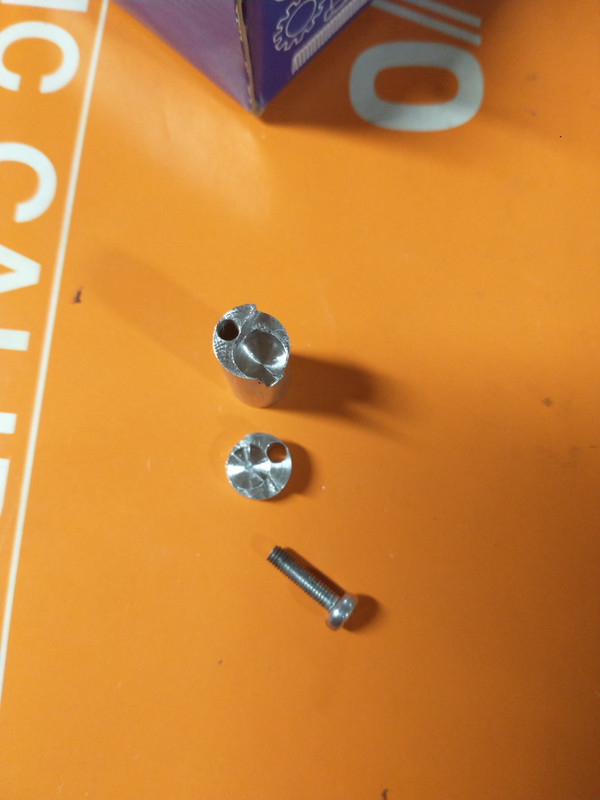

I built two different versions to try on a Micro 355, the first was from 3/8" aluminum rod and used an M3 screw to hold it together. There is very little clearance between the stock and the safety lever when in the down position. It did tilt a bit when tightening up.

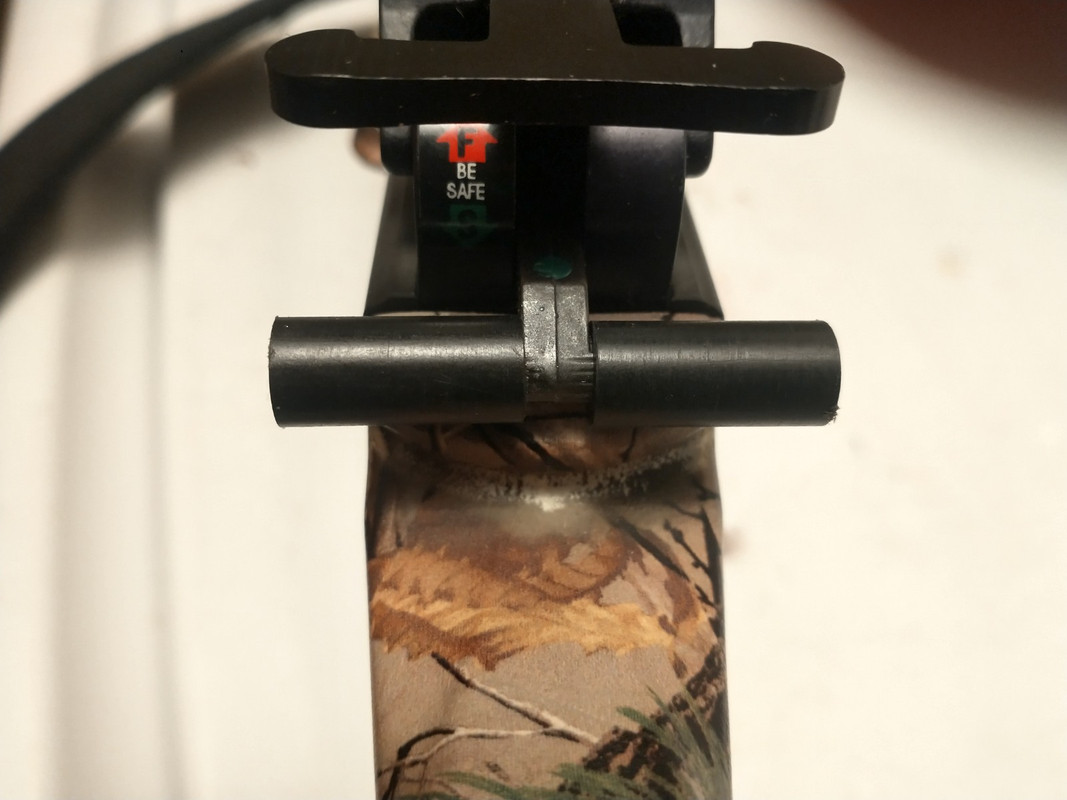

The next one that I tried was made from 3/8" plastic rod, the knurled part measured around .245" so I dropped down to a letter C drill bit that was running around .242" for the hole. I drilled it near the edge of the spacer to be able to rotate it and maintain clearance on the bottom. It is a slip fit onto the round parts coming off of the lever.
If you wanted to install them in a semi permanent fashion you could always add a drop of epoxy before pushing them home. It does not seem much easier to snag than the ADF extension, although if you are wandering through really brushy stuff then there is the possibility of getting it flipped to fire, so if you do decide to add an extension due to wanting to make it easier to use, then watch it for snagging accordingly.
The next one that I tried was made from 3/8" plastic rod, the knurled part measured around .245" so I dropped down to a letter C drill bit that was running around .242" for the hole. I drilled it near the edge of the spacer to be able to rotate it and maintain clearance on the bottom. It is a slip fit onto the round parts coming off of the lever.
If you wanted to install them in a semi permanent fashion you could always add a drop of epoxy before pushing them home. It does not seem much easier to snag than the ADF extension, although if you are wandering through really brushy stuff then there is the possibility of getting it flipped to fire, so if you do decide to add an extension due to wanting to make it easier to use, then watch it for snagging accordingly.
2002 Exomag
Varizone with Burris Sig. Zee Rings
My mods:
Scope cover adapters
Optomechanical rangefinder
Custom built lit nocks
BCY Trophy flemish string
20" XX75 2219 arrows with 4" feathers
Varizone with Burris Sig. Zee Rings
My mods:
Scope cover adapters
Optomechanical rangefinder
Custom built lit nocks
BCY Trophy flemish string
20" XX75 2219 arrows with 4" feathers
Re: Safety Lever
I kept an elastic around the handgrip and pulled it over the safety to prevent snagging many times in the past.
EXCALFFLICTION 1991 ->>----------> 2024
Matrix 355
Huskemaw and Leupold crossbow optics.
Boo Strings
SWAT BH's and TOTA heads.
Teach Your Family How To Hunt So You Don't Have To Hunt For Your Family
Matrix 355
Huskemaw and Leupold crossbow optics.
Boo Strings
SWAT BH's and TOTA heads.
Teach Your Family How To Hunt So You Don't Have To Hunt For Your Family
Re: Safety Lever
Great idea for when moving through thick brush. Also having an extra elastic or two on hand is never a bad thing. I'm working on an extension today and will have an elastic or two around the grip. One to hold the safety and an extra just in case.
Thanks for the idea
Hatchet
