380 Trigger unit

Post by Boo »

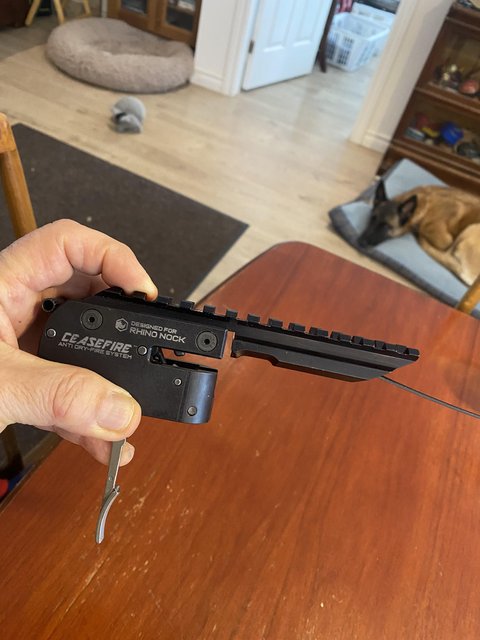

I thought you guys would like some close-ups on the Ceasefire trigger in the new 380 Micro.

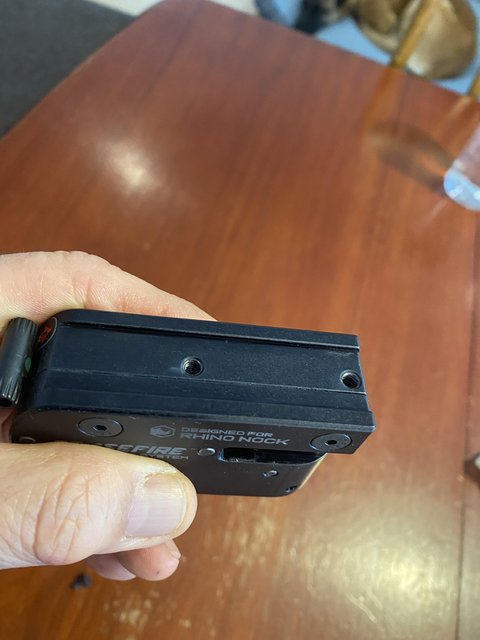

The scope base is a vast improvement over the past. It butts up to the trigger unit and dovetails in and is held by 2 beveled 4mm screws.

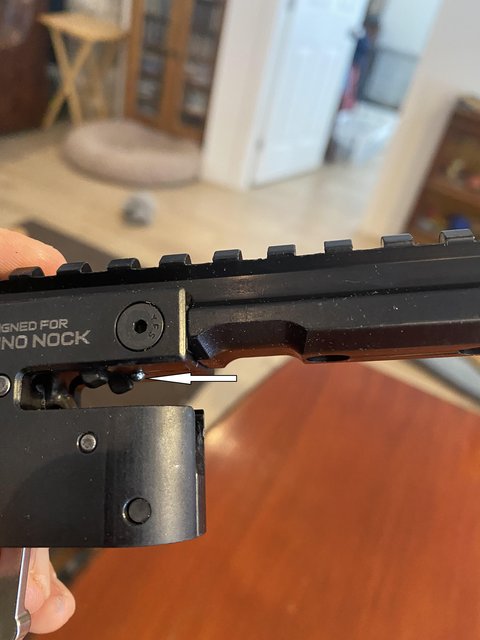

This is the detent that engages the groove in the Rhino nock and pushes the arrow down to have a ADF fully engaged. There will be a whole lot less semi dry-fires with this trigger unit.
Here is the ADF

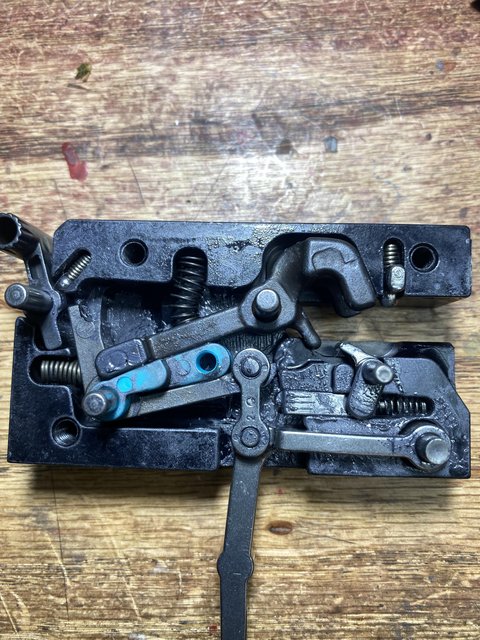

It uses a roller like the ACP trigger but it is obviously more sophisticated. With the old system if you had a dryfire, depending on the bow, it may change your POI or damage your serving. This will not happen with this system. More importantly, I think it cures all of the ills of the other when it comes to the scope being loose. The old system had holes larger than the screws allowing the base to go up and down. The new trigger unit has the scope base fastened from the top and has beveled holes and larger screws.
All in all I think Kyle should be commended for his design! It is a vast improvement :thumbup: ! I don't want to know what money went into the R&D and the cost to manufacture. :eusa-think:
Some people just like stepping on rakes
Top
User avatar
Carnivorous
Posts: 3791
Joined: Sun Dec 25, 2005 12:56 pm
Location: Belleriver Ontario

Re: 380 Trigger unit

Post by Carnivorous »

Looks good Don!

Are they available for purchase if a guy wanted to drop one in the micro nightmare? :)
A touch of frost has heightened your awareness and your heart steadily beats in anticipation. Your senses are suddenly alert to the movement on the forest floor and you realize that the moment of truth is at hand.
Top
User avatar
Boo
Posts: 14402
Joined: Thu Dec 29, 2005 11:04 pm
Location: Newtonville, Ontario, Canada
Contact:
Contact Boo

Re: 380 Trigger unit

Post by Boo »

Carnivorous wrote: ↑
Thu Feb 03, 2022 4:45 pm
 Looks good Don!

Are they available for purchase if a guy wanted to drop one in the micro nightmare? :)
Sorry Jeff, donno :think:
Some people just like stepping on rakes
Top
Normous
Posts: 8319
Joined: Tue Jan 03, 2006 3:04 pm
Location: Windsor, Ontario.

Re: 380 Trigger unit

Post by Normous »

Anybody know if Rhino nocks available for purchase separately for the DIY arrow builder?
EXCALFFLICTION 1991 ->>----------> 2024
Matrix 355
Huskemaw and Leupold crossbow optics.
Boo Strings
SWAT BH's and TOTA heads.
Teach Your Family How To Hunt So You Don't Have To Hunt For Your Family
Top
User avatar
AJ01
Posts: 2537
Joined: Fri Nov 24, 2017 10:09 am
Location: Deep in the Heart of the East Texas Piney Woods!

Re: 380 Trigger unit

Post by AJ01 »

Normous wrote: ↑
Thu Feb 03, 2022 5:37 pm
 Anybody know if Rhino nocks available for purchase separately for the DIY arrow builder?
Wyvern's has them for sale.
“Life should not be a journey to the grave with the intention of arriving safely in a pretty and well preserved body, but rather to skid in broadside in a cloud of smoke, thoroughly used up, totally worn out and loudly proclaiming "Wow, What a Ride!
Top
Normous
Posts: 8319
Joined: Tue Jan 03, 2006 3:04 pm
Location: Windsor, Ontario.

Re: 380 Trigger unit

Post by Normous »

:thumbup:
EXCALFFLICTION 1991 ->>----------> 2024
Matrix 355
Huskemaw and Leupold crossbow optics.
Boo Strings
SWAT BH's and TOTA heads.
Teach Your Family How To Hunt So You Don't Have To Hunt For Your Family
Top
Hatchet
Posts: 741
Joined: Fri Jan 17, 2020 10:44 am
Location: Maine

Re: 380 Trigger unit

Post by Hatchet »

I really like the new mounting setup for the scope rail.
These improvements seem like they are well thought out and this trigger is sure to be a big hit! Kudos to Kyle on an excellent design!
Take care
Hatchet
Top
xcaliber
Posts: 12850
Joined: Fri Jan 11, 2013 7:35 pm
Location: NW Indiana

Re: 380 Trigger unit

Post by xcaliber »

Thanks for the information and pictures Don, looks great.
It’s not the way you rock, it’s the way that you roll!
Top
wheelsquad
Posts: 631
Joined: Thu Feb 21, 2019 3:23 pm

Re: 380 Trigger unit

Post by wheelsquad »

Thanks for sharing, Don. 👊
adapt3Dprints.square.site
(Charger EXT blackout covers, Charger handle stow brackets, Cheek Rests)

327 Short Banshee
BD417
Micro/Matrix hybrid Steambow
Franken360
Top
Farmer
Posts: 3032
Joined: Sun Oct 13, 2002 6:35 am
Location: SW..Ontario

Re: 380 Trigger unit

Post by Farmer »

I like the new design ! Thanks for the information Don !
Top
User avatar
bigbowman
Posts: 769
Joined: Wed Sep 15, 2010 10:04 am
Location: Ripon, WI

Re: 380 Trigger unit

Post by bigbowman »

I definitely want one of these new triggers to try in a Suppressor 400TD!
Burky247365 Custom Scorpyd Orion Extreme
Top
sportsman70003
Posts: 128
Joined: Thu Nov 08, 2012 7:21 am
Location: Felton, Pa

Re: 380 Trigger unit

Post by sportsman70003 »

Will this trigger work in the Suppressor 400td??
Suppressor 400 TD
Dragon Claw Arrows
Ravntek Broadheads
Top
User avatar
Boo
Posts: 14402
Joined: Thu Dec 29, 2005 11:04 pm
Location: Newtonville, Ontario, Canada
Contact:
Contact Boo

Re: 380 Trigger unit

Post by Boo »

sportsman70003 wrote: ↑
Sat Sep 17, 2022 8:31 pm
 Will this trigger work in the Suppressor 400td??
Doubt it. The Suppressor is a bull pup. The trigger and the trigger unit are not one unit. The Suppressor has a trigger with a linkage that goes between the trigger lever and the trigger. The Ceasefire trigger lever goes into and attaches to internal parts. There is no place to attach a linkage. A linkage has to attach right at the bottom of the trigger unit, almost level with the base.
Some people just like stepping on rakes
Top
User avatar
janesy
Posts: 4794
Joined: Sat Dec 05, 2015 8:20 pm
Location: Beavertown. Ont

Re: 380 Trigger unit

Post by janesy »

What's this there for :twisted: ?

Blackout BD-Axe "Hatchet340"
Top
User avatar
Boo
Posts: 14402
Joined: Thu Dec 29, 2005 11:04 pm
Location: Newtonville, Ontario, Canada
Contact:
Contact Boo

Re: 380 Trigger unit

Post by Boo »

Donno Chris, but I think it is too low and would be a long trigger pull. Cut the lever and the trigger unit is useless for a non-BD bow.
Some people just like stepping on rakes
