Brace height. String length.

Post by servinproud »

Hello all. I have a matrix 355. I'm trying to see if my string is in the correct position. It is resting at the joint where the riser meets the rail. 1/2 inch from end plate. Is this correct. Or should the string be resting on the two lines which is a little over an inch from the end
User avatar
Kegbelly
Posts: 1639
Joined: Mon Sep 23, 2013 8:04 pm

Re: Brace height. String length.

Post by Kegbelly »

Welcome to the forum!

The string should be about 3/4" from the joint where the rail and riser meet. Or if yours has the two marks on the rail, the string should be in between those marks.
Do you have a stringing aid? That's how you adjust brace height, you use the stringing aid to take tension off the string then add twists to the string to raise brace height. Personally I wouldnt shoot it with brace height that low, you could possibly damage the bow.
Matrix 380
18" Zombies, 400 gr w/ 125 gr Magnus Stingers & Lumenoks
Exomag
20" Zombies, 380 gr w/ 100 gr Magnus Stingers
servinproud
Posts: 4
Joined: Mon Aug 25, 2014 10:21 pm

Re: Brace height. String length.

Post by servinproud »

No I don't have a stringing aid. My bow has a line on the rail one inch from the riser. The string is sitting on the joint where the riser and rail join which is 1/2 inch . I took it to the pro shop last week and he twisted the string and got me to that point which raised the FPS from 280 to 348. But I still don't think it is far enough.
xcaliber
Posts: 12850
Joined: Fri Jan 11, 2013 7:35 pm
Location: NW Indiana

Re: Brace height. String length.

Post by xcaliber »

My 355 sits 7/8" from the split.
Congrats on the sweet bow.
It’s not the way you rock, it’s the way that you roll!
servinproud
Posts: 4
Joined: Mon Aug 25, 2014 10:21 pm

Re: Brace height. String length.

Post by servinproud »

How can I add a pic of bow on here
User avatar
Kegbelly
Posts: 1639
Joined: Mon Sep 23, 2013 8:04 pm

Re: Brace height. String length.

Post by Kegbelly »

You have to use a hosting service like photobucket. Upload to photobucket then copy the image URL and paste in your post inside the "Img" image tags.
Matrix 380
18" Zombies, 400 gr w/ 125 gr Magnus Stingers & Lumenoks
Exomag
20" Zombies, 380 gr w/ 100 gr Magnus Stingers
hillHuntR
Posts: 19
Joined: Fri Aug 24, 2012 5:57 am
Location: Indiana

Re: Brace height. String length.

Post by hillHuntR »

I may be missing something, but it sounds like you are measuring from the wrong spot. If your string is sitting on the joint where the riser meets the rail your brace height is measured as zero and string must be twisted tighter (string should rise up on rail towards scope end and away from riser) before safe shooting.
Axiom SMF
Redfield Revenge
2219's n' Slick Trick Std 125's

Exomax
Hawke 1" 1-5 SR
BEE's n' Slick Trick Std 125's
User avatar
Kegbelly
Posts: 1639
Joined: Mon Sep 23, 2013 8:04 pm

Re: Brace height. String length.

Post by Kegbelly »

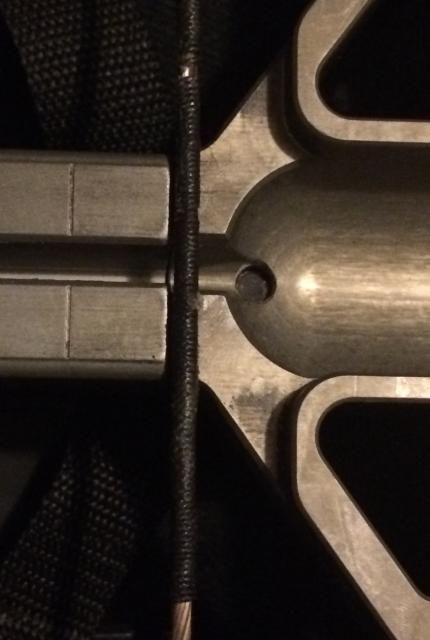

Servinproud sent me a picture of his bow and I'm posting it for him. Brace height is way too low, don't shoot it like that! At a minimum the string should be above the lowest brace height mark.
Matrix 380
18" Zombies, 400 gr w/ 125 gr Magnus Stingers & Lumenoks
Exomag
20" Zombies, 380 gr w/ 100 gr Magnus Stingers
User avatar
8ptbuk
Posts: 1465
Joined: Sun Oct 14, 2012 12:14 pm
Location: Patrick County Virgina

Re: Brace height. String length.

Post by 8ptbuk »

Servinproud , welcome ! You definitely need to put several CC twist in your string to get it up above the line . If your not doing it I would suggest a LIGHT waxing of the center serving also ( Rub it in really good ) . Your latches that hold the string probably could stand a good polishing also ( search on here ) . String maintenance is really all you ever have to do to these xbows ! Enjoy ! :D
James : 1 - 19-20 Know this , My beloved Brothers : Let every person be quick to hear , slow to speak , slow to anger , for the anger of man does not produce the righteousness of God .

8ptbuk's Flemish Strings
