My buddy called me w scope trouble.

Post by Riflemanz » Tue Sep 10, 2019 1:55 pm

My buddy has a matrix 355 w tac-zone scope and today he told me he's out of elevation adjustment on the scope.
How does he fix this problem?
Team Matrix 355
Matrix 355 The Crusher
TT 2 stage trigger
Executioner arrows
Easton XX75 magnums 2219
Xcaliber custom string
Boo Custom String
Vixenmaster Custom string
8ptbuk string
Rocket 3 blade 2" cut
Slick tricks
HSS Vest 30' lifeline

User avatar
wheelie
Posts: 3811
Joined: Sat Nov 08, 2008 3:01 am
Location: Meaford, Ont.

Re: My buddy called me w scope trouble.

Post by wheelie » Tue Sep 10, 2019 2:49 pm

Two spacers out of a pop can under the scope rear ring is what I always do. Do it on rifles/ pellet guns quiet often as well. Don't want to do that, lower rings help also. Could also turn existing rings around- Front one make back ring-back one on front sometimes helps. CHEERS!
Last edited by wheelie on Tue Sep 10, 2019 2:55 pm, edited 1 time in total.

User avatar
amythntr
Posts: 6480
Joined: Wed Nov 13, 2013 12:26 pm
Location: T.P.R.N.J.

Re: My buddy called me w scope trouble.

Post by amythntr » Tue Sep 10, 2019 2:53 pm

Riflemanz wrote:
Tue Sep 10, 2019 1:55 pm
My buddy has a matrix 355 w tac-zone scope and today he told me he's out of elevation adjustment on the scope.
How does he fix this problem?
....I would call the Doctor, Danny Miller and see what he says...He might tell you to ship it back and he will send you another or call Excalibur and explain to them...and the last thing I would do is tell your buddy to invest in a better scope (never, never, never have had an issue with a Leupold....)
I know many love the tac-zone but this is MHO....

Danny's phone number is 1.740.438.2312.
he is in Sardis, OH.

Good luck!

Anthony :D
In a tough situation and wonder where God is; ...the Teacher is always quiet during the test.

Anthony :D

A420TD (Assassinatore di Cervi)
A360 (l'Assassino)
2-AXE 340
Scorpyd DS (w/AeroCrank AD)
G1-NM335(On loan)
ZS,Ex
Spits
Boo,NChunterkw,Vixenm

User avatar
janesy
Posts: 3249
Joined: Sat Dec 05, 2015 8:20 pm
Location: Beavertown. Ont

Re: My buddy called me w scope trouble.

Post by janesy » Tue Sep 10, 2019 3:24 pm

I'd being giving the setup a solid look over. Unless he is going for long range, that's either a moving scope base, incorrect seated rings or a bad scope. Nearly impossibly to run out of adjustment on an excalibur at hunting distances.
Micro-Hybrid-bulldog "PitBull370"
MOBU Micro BD345 "Greener"
Blackout BD-Axe "Hatchet340"

Every little sound in the bush sounds like footsteps... Until you hear footsteps!

papa bear1
Posts: 1297
Joined: Thu Aug 04, 2011 9:30 am
Location: southwest missouri in the ozarks

Re: My buddy called me w scope trouble.

Post by papa bear1 » Tue Sep 10, 2019 3:49 pm

:shock: :shock:
amythntr wrote:
Tue Sep 10, 2019 2:53 pm
Riflemanz wrote:
Tue Sep 10, 2019 1:55 pm
My buddy has a matrix 355 w tac-zone scope and today he told me he's out of elevation adjustment on the scope.
How does he fix this problem?
....I would call the Doctor, Danny Miller and see what he says...He might tell you to ship it back and he will send you another or call Excalibur and explain to them...and the last thing I would do is tell your buddy to invest in a better scope (never, never, never have had an issue with a Leupold....)
I know many love the tac-zone but this is MHO....

Danny's phone number is 1.740.438.2312.
he is in Sardis, OH.

Good luck!

Anthony :D :shock: :shock:
Be safe in all you do! See ya in the woods!!!
2010 Equinox/ Known as Doe Bow
Firebolts
Swhacker BH,s 125 grn
cheek pad /excell string
D-Bars
S-5,s
vixenmaster custom strings

User avatar
Carnivorous
Posts: 3046
Joined: Sun Dec 25, 2005 12:56 pm
Location: Belleriver Ontario

Re: My buddy called me w scope trouble.

Post by Carnivorous » Tue Sep 10, 2019 4:02 pm

Warranty claim.
A touch of frost has heightened your awareness and your heart steadily beats in anticipation. Your senses are suddenly alert to the movement on the forest floor and you realize that the moment of truth is at hand.

vixenmaster
Posts: 13585
Joined: Wed Sep 14, 2005 3:51 pm
Location: Land of Rocks, Ozarks Mo.

Re: My buddy called me w scope trouble.

Post by vixenmaster » Tue Sep 10, 2019 5:31 pm

Sumpin ain't right, almost never have trouble of elevation range. Bad rings or not into the grooves correctly, could be a bad scope
Limb Breakin Half Bubble Off BD360
Marie Laveau MXB Charge Banshee MXB320
Awshucks Relayer 25
[email protected] 417-505-9315

Riflemanz
Posts: 2369
Joined: Thu Feb 04, 2010 8:12 am
Location: Wisconsin

Re: My buddy called me w scope trouble.

Post by Riflemanz » Tue Sep 10, 2019 6:11 pm

I'll tell him to drop it off at my house so I can go over it. He's not real experienced with crossbows. I check all screws and then remount the scope and see what happens.
Team Matrix 355
Matrix 355 The Crusher
TT 2 stage trigger
Executioner arrows
Easton XX75 magnums 2219
Xcaliber custom string
Boo Custom String
Vixenmaster Custom string
8ptbuk string
Rocket 3 blade 2" cut
Slick tricks
HSS Vest 30' lifeline

Smong2000
Posts: 140
Joined: Fri Mar 18, 2016 3:21 pm
Location: Vermont

Re: My buddy called me w scope trouble.

Post by Smong2000 » Fri Sep 13, 2019 2:35 pm

I think if you need to shim a scope up you should put the spacers under the base not the rings. We lap in the rings with a precision metal rod to make sure they are perfectly even on high end rifle scopes so they don't slip or damage the scope. I have seen plastic tape inside the rings on some Walmart stuff so other than damaging the scope tube it may work out fine, it's just not the 'correct' way to do it.
Never heard of a crossbow being that far off, maybe mismatched rings? Could try switching rings front to rear to verify, but I would bet on a bad scope or loose screws...

colouredchameleon
Posts: 759
Joined: Sat Nov 24, 2012 6:44 pm

Re: My buddy called me w scope trouble.

Post by colouredchameleon » Sat Sep 14, 2019 3:19 pm

Question at what distance is your buddy shooting when they are adjusting the elevation.

If it is any distance other than 20 yds. Then they should start over and check their zero sight in at 20 yd.
Then move the target out to 50 yds and use their speed ring to adjust the elevation up or down only.
Then go back to 20 and fine tune their zero if need be.

Riflemanz
Posts: 2369
Joined: Thu Feb 04, 2010 8:12 am
Location: Wisconsin

Re: My buddy called me w scope trouble.

Post by Riflemanz » Sat Sep 14, 2019 7:57 pm

20yds
Team Matrix 355
Matrix 355 The Crusher
TT 2 stage trigger
Executioner arrows
Easton XX75 magnums 2219
Xcaliber custom string
Boo Custom String
Vixenmaster Custom string
8ptbuk string
Rocket 3 blade 2" cut
Slick tricks
HSS Vest 30' lifeline

colouredchameleon
Posts: 759
Joined: Sat Nov 24, 2012 6:44 pm

Re: My buddy called me w scope trouble.

Post by colouredchameleon » Sat Sep 14, 2019 9:03 pm

When your buddy adjusts elevation up or down does the point of impact change.
I would try one other thing before calling Excalibur.
Adjust the elevation slowly counting each tick all the way down from where it maxed out. Do not force.
While doing so look into the scope at a fixed spot and see if the crosshairs moves in response to the adjustment.
No indication of movement Call Excalibur.
If there is then
Reverse the adjustment back half the number of the click count.
Then try to sight in at 20 yds again.
If that don't help then it is time to call customer service.
I would think it would be highly unusual to have to use shims on a Excalibur original setup.
Unless of course after market components have been introduce into equation

Riflemanz
Posts: 2369
Joined: Thu Feb 04, 2010 8:12 am
Location: Wisconsin

Re: My buddy called me w scope trouble.

Post by Riflemanz » Mon Sep 16, 2019 6:04 pm

He's dropping it off in the morning, i'll check all screws and take off the scope and remount it and see what happens.
Team Matrix 355
Matrix 355 The Crusher
TT 2 stage trigger
Executioner arrows
Easton XX75 magnums 2219
Xcaliber custom string
Boo Custom String
Vixenmaster Custom string
8ptbuk string
Rocket 3 blade 2" cut
Slick tricks
HSS Vest 30' lifeline

Riflemanz
Posts: 2369
Joined: Thu Feb 04, 2010 8:12 am
Location: Wisconsin

Re: My buddy called me w scope trouble.

Post by Riflemanz » Tue Sep 17, 2019 4:50 pm

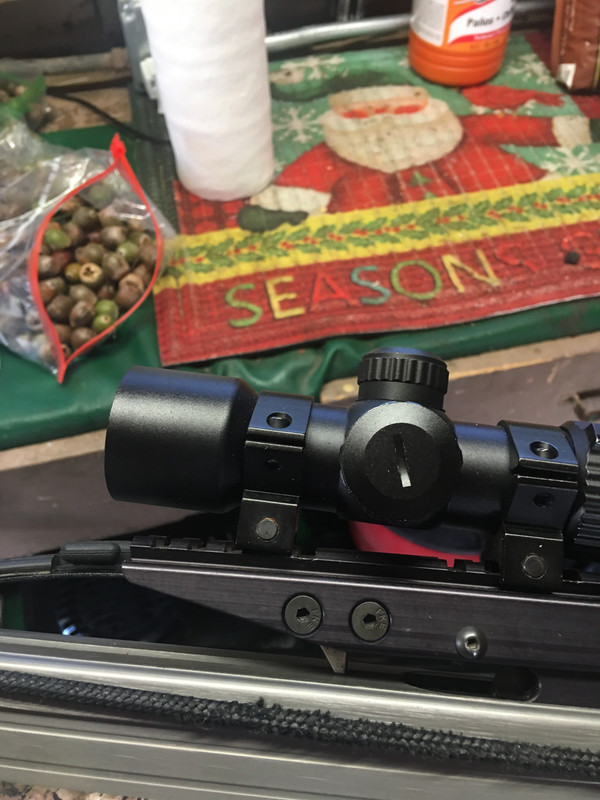

I have my friends 355 and as soon as I opened the case I saw the problem.
The scope ring jumped the base on the left side.
Very easy fix. I then checked all screws and bolts.
I adjusted brace height, waxed the string, cleaned the rail, sighted it in at 10 yds for him, were going to meet at the range on Thursday. His arrows are mismatched so I gave him some of my diablos. He needs to order some bees. I’m glad I could help him.
Team Matrix 355
Matrix 355 The Crusher
TT 2 stage trigger
Executioner arrows
Easton XX75 magnums 2219
Xcaliber custom string
Boo Custom String
Vixenmaster Custom string
8ptbuk string
Rocket 3 blade 2" cut
Slick tricks
HSS Vest 30' lifeline

User avatar
janesy
Posts: 3249
Joined: Sat Dec 05, 2015 8:20 pm
Location: Beavertown. Ont

Re: My buddy called me w scope trouble.

Post by janesy » Tue Sep 17, 2019 5:13 pm

Riflemanz wrote:
Tue Sep 17, 2019 4:50 pm
I have my friends 355 and as soon as I opened the case I saw the problem.
The scope ring jumped the base on the left side.
Very easy fix. I then checked all screws and bolts.
I adjusted brace height, waxed the string, cleaned the rail, sighted it in at 10 yds for him, were going to meet at the range on Thursday. His arrows are mismatched so I gave him some of my diablos. He needs to order some bees. I’m glad I could help him.
HA! That exactly what I did two weeks ago and put an arrow into my basement wall.
